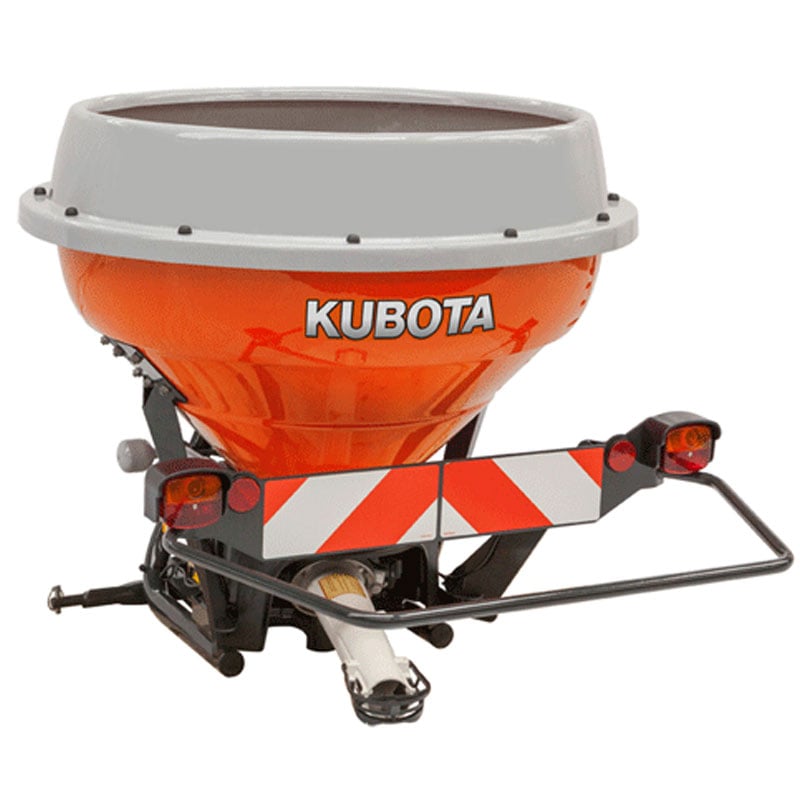

KUBOTA VS220-VS330 SPREADER

KUBOTA SPREADERS VS220-VS330
The Kubota VS220-VS330 spreader has a hardwearing polyethylene hopper with a basic capacity of 200 litres and an optional extension rim to create 330 litres hopper capacity. The compact design in combination with the short spreading surface gives you an optimal spreader for working in small areas. Spreading width from 1 – 15 metres is possible.

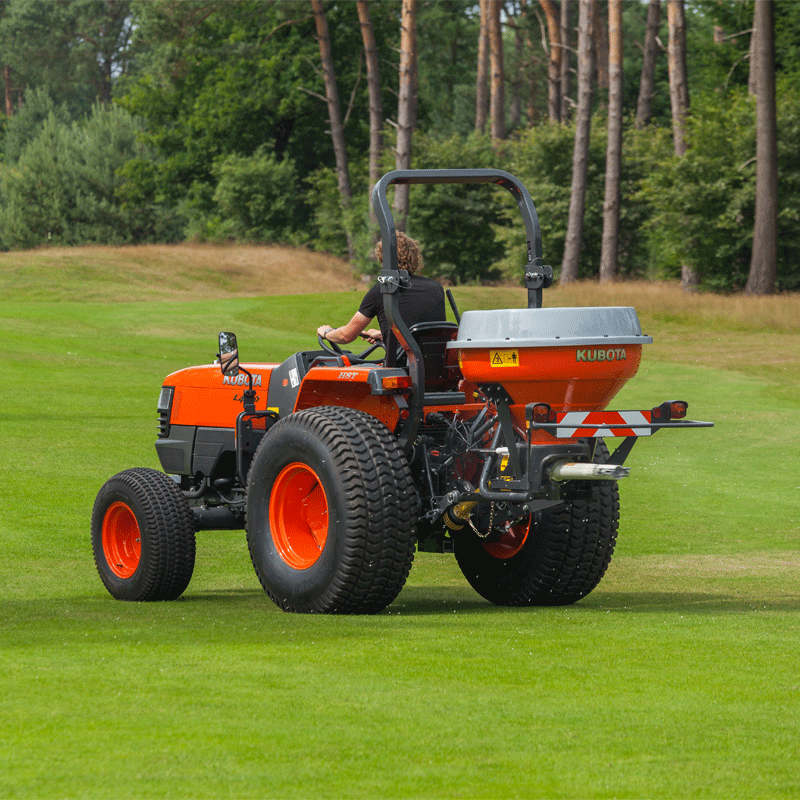

The VS220/330 is the smallest model in the Kubota pendulum spreader range. This spreader is ideal for use on golf courses and sport fields, as well as many horticulture and municipal applications.

A variety of spouts for different applications and working widths makes it possible to spread fertiliser, seeds, sand, salt, pellets or any other granular product up to 14m. The VS220 has a hardwearing polyethylene hopper with a basic capacity of 220 litres and an optional extension rim to create 330 litres.

The compact design in combination with the short spreading surface provides an optimal spreader for working in small areas.
Technical specifications

VS
VS400
VS500
Hopper capacity (l)
400
500
Hopper width (cm)
145
145
Filling height (cm)
89
101
Weight 3-point types (kg)
121
126
PTO speed (rpm/min)
540
540
Three-point linkage category
 1 – 2
 1 – 2

Optional Equipment

Lighting set
For all VS spreaders an optional lighting set is available. Reflector decals are available for safe transport.
Fine application kit
Shuts two of the three openings of the metering device for the application of small quantities of fine seeds.
Pivoting wheels
This set of pivoting wheels allows the spreader to be easily moved when detached from the tractor.
Agitator
The agitator ensures an even material feed to the spreading unit. A safety grid protects the agitator.
Grid
A grid fitted inside the hopper prevents lumps of fertiliser penetrating the feed mechanism.
Fine application kit
Shuts two of the three openings of the metering device for the application of small quantities of fine seeds.
Calibration container
Allows calibration tests to be performed with spout in place.
Hopper extensions
To increase hopper capacity, 100, 110, 200, 300, 600 and 900 litre hopper extensions are available (varies by model).
Hydraulic remote control
Allows the metering disc to be opened and closed from the driver’s seat (one single acting control valve required).
